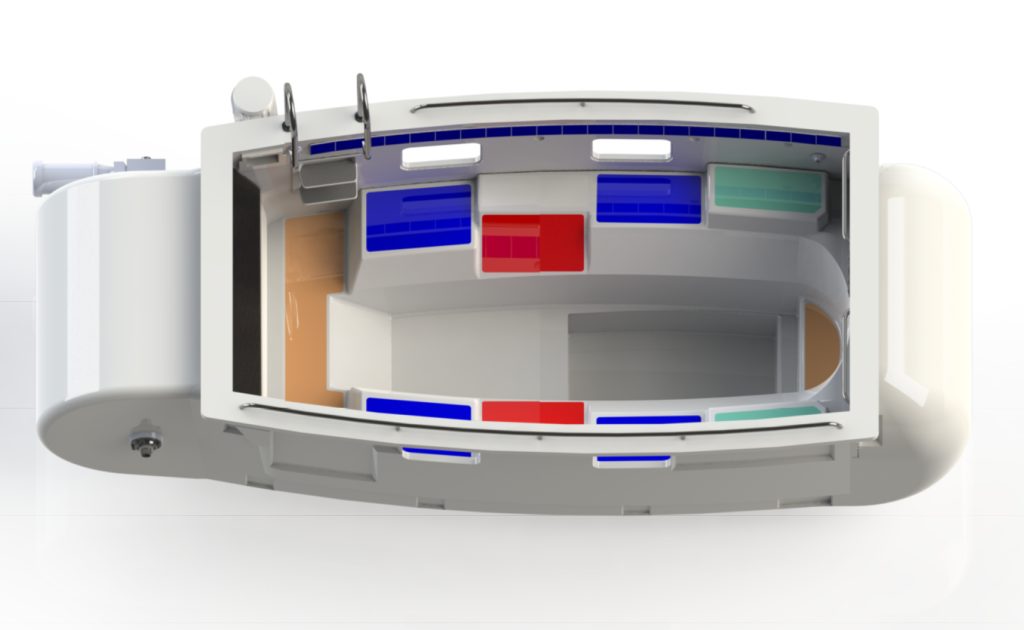

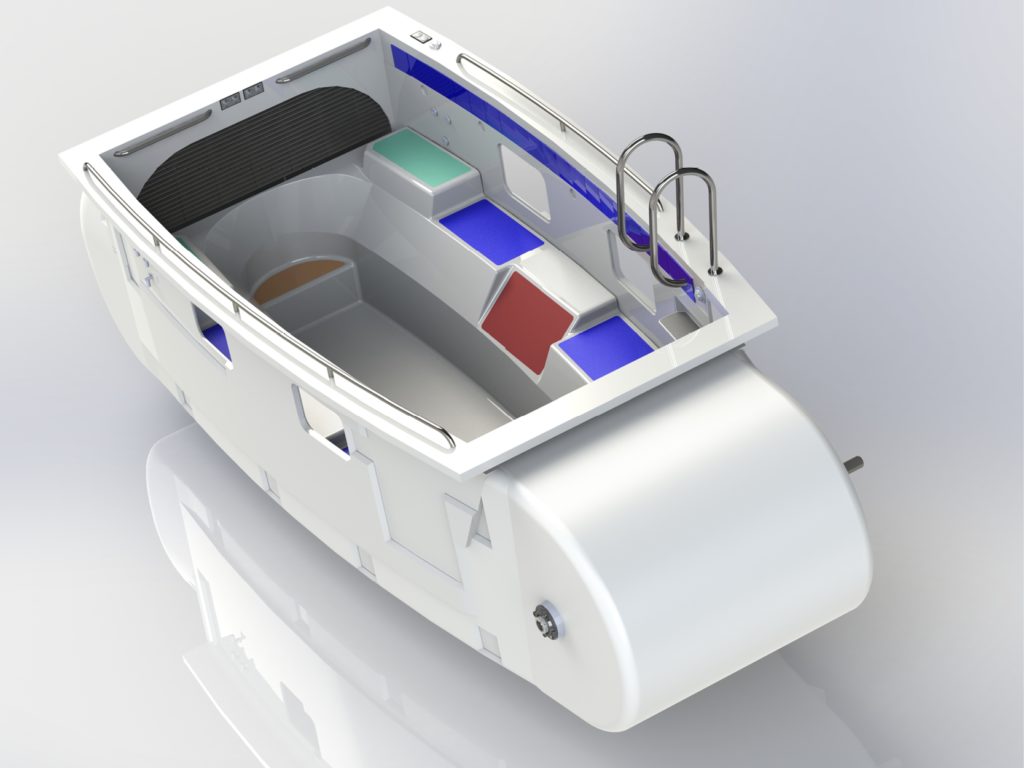

This superior fiberglass training pool is a compact aquatic therapy machine that offers unlimited versatility. With two multipurpose water depths, it has eight colored performance zones, plyometric pads, open/closed chain kinetic exercise benches, and access steps. Featuring the most advanced water current, this ultimate therapy pool has 99 water speeds circulating up to 25,000 gallons of water flow per minute (94,635 l/pm) to create strong, smooth current that spans the entire pool width.
The 40-degree angled running pad offers the ultimate platform for running against the current in a limited weight-bearing environment. The adjustable floor provides the therapist with the ability to gradually increase activities, providing a seamless transition to land-based protocols. This pool is the ideal aquatic environment for therapy and strength training in all phases of rehabilitation and conditioning.
500 OT: 1-piece pool (no seams and no assembly required). 500 OTDW: 12″ deep well.
500 T: 4-piece pool for tight installations. 500 TDW: 12″ deep well.
Videos
All 500 T Series models
- Two water depths: 38″ and 50″ (96.5cm and 127cm)
- Commercial filtration system
- Equalization skimmer
- Recessed steps with stainless steel handrails
- Stainless steel front and side handrails
- Rear emergency shut-off bar
- 5hp electric motor
- Thermal blanket (cover)
- EDGE touchscreen monitor accurately programs water speed to measure performance
- 4 underwater observation windows
- 2 stainless steel front handrails
- Waterline tiles
- Water vacuum
- Treadmill simulator (40-degree angled pad) for stationary running
- 8 colored performance zones built-in around perimeter of pool
- Floor inserts: 38″ (97cm) depth with removable pole
- On-site personal educational in-service training
- Protocol book and aquatic therapy DVD set
- Start-up water treatment kit and test kit
- Annual maintenance kit
500 T
- 4-piece multi-sectional design for access into tight areas
500 OTDW / 500 TDW
For more information, visit our features and options page.
500 T
- Pool size: 17’-7” x 7’-8” x 5’ (5.36m x 2.34m x 1.52m)
- Water dimensions: 11′9″ x 6′3″ (3.58m x 1.90m)
- Pit size: 20′4′ x 12′ x 4′10.5″ (6.1m x 3.66m x 1.485m)
- Pool weight with equipment: 3,200 lbs (1,451kg)
- Pool volume: 2600 gal (9842 liters)
- Pool filled weight: 25,000 lbs (11,340kg)
- Load bearing: 425 lbs sq ft (2074.31 kg/m2)
500 OT
- Pool size: 17’-8 ¾” x 7’-7” x 5’ (5.40m x 2.31m x 1.52m)
- Water dimensions: 11′9″ x 6′3″ (3.58m x 1.90m)
- Pit size: 20′ x 4 12′ x ′10.5″ (3.66m x 6.1m x 1.485m)
- Pool weight with equipment: 3,200 lbs (1,451kg)
- Pool volume: 2600 gal (9842 liters)
- Pool filled weight: 25,000 lbs (11,340kg)
- Load bearing: 425 lbs sq ft (2074.31 kg/m2)
500 OTDW
- Pool size: 17’-8 ¾” x 7’-7” x 6’ (5.40m x 2.31m x 1.83m)
- Water dimensions: 11′9″ x 6′3″ (3.58m x 1.90m)
- Pit size: 20′ x 12′ x 5′10.5″ (6.1m x 3.66m x 1.79m)
- Pool weight with equipment: 3200 lbs (1451kg)
- Pool volume: 2700 gal (10,220 liters)
- Pool filled weight: 25,850 lbs (11,725kg)
- Load bearing: 425lbs sq ft (2074.31 kg/m2)
For European installations: For medical and sports-medical use, installations can be according to the German DIN19643 /KOK standard.
Please work with a SwimEx representative for exact details and measurements.
All 500 T Series models
- 7.5 hp electric motor for faster water speeds
- Natural gas or propane heater vs standard electric heater (requires a 5″ (12.7 cm) vertical vent)
- Ozonator or UV water treatment
- 2 underwater lights
- Custom colors or logo tiles
- Hydrotherapy jet system with up to six jets (includes 2hp pump and controller)
- Underwater HD video camera system with DVR and monitor
- Exterior video camera system with monitor
- Deep tissue massage wand with independent pump
- Removable stainless steel stabilization bar
- Disability lifts
- Integrated motorized treadmill *
- Drop-in aquatic treadmill *
500 T
- 8-piece multi-sectional design for access into even tighter spaces
500 TDW / 500 OTDW
- 24″ deep water well available
* For treadmills, see our exercise equipment page.
For more information, visit our features and options page.
