Coaching Pool - Treadmill Pool - 600 T Series

600 T, 600 TDW, and 60 T models

600 T Series coaching pool key features

600 T and 600 TDW:

  • Strongest paddlewheel water current
  • Deeper 28″ (71cm) current
  • Adjustable depths 48″ and 60″ (122cm and 152cm)
  • Integrated treadmill can be added at 48″ (122cm)
  • Eight colored performance zones
  • Running platform
  • Tethering ports
  • Four-piece construction

600 TDW:

  • Deep well

60 T:

  • Compact
  • Six colored performance zones
  • Three or six pieces

Read case studies and reviews of our 600 T pools.

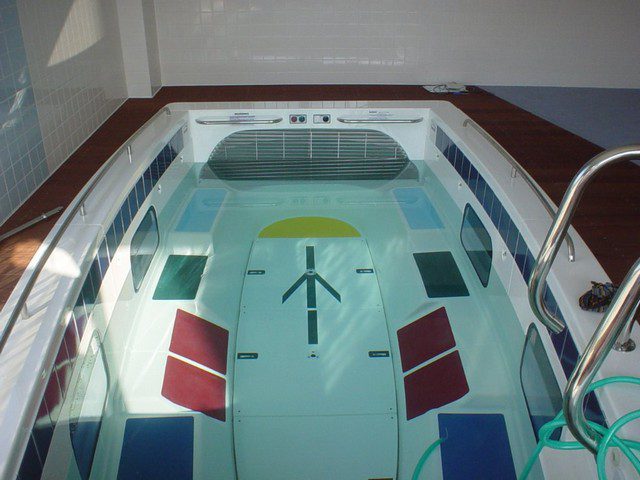

600 T

The SwimEx 600 T coaching pool for elite athletes is the most powerful aquatic machine on the market. With adjustable depths of 48″ and 60″ (122cm and 152cm), it features 99 water speeds, independent performance zones for targeted exercises, angled plyo pads, open/closed chain kinetic exercise benches, and an angled platform for running against the current. Six tethering ports allow physical therapists the ability to lock in a patient during non-weight-bearing protocols. The floor inserts provide the option to gradually increase weight-bearing activities, creating the ideal aquatic therapy environment for progressive strength training and rehabilitation programs.

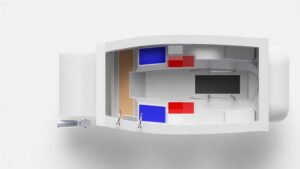

For even more versatility, add an integrated underwater treadmill *.

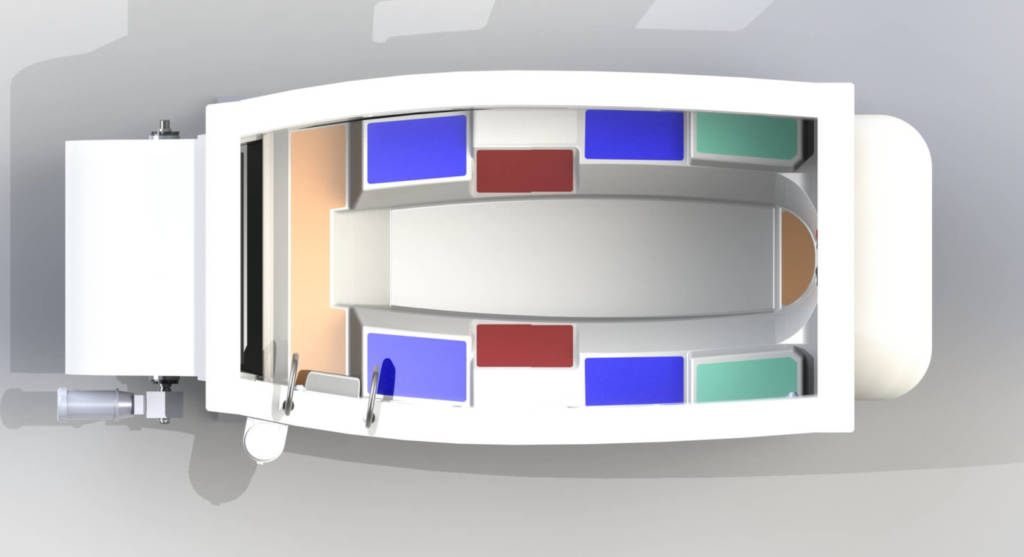

600 with work stations top down
600 T with 8 performance zones

600 TDW

The 600 TDW coaching pool has the same features and extreme power of the 600T with the additional advantage of a deep-water running well that adds either 12″ (30.5cm) or 24″ (61cm) to the pool′s depth. The deep-water well is designed for total non-weight bearing rehabilitation and conditioning applications for more aggressive therapy. This aquatic machine features the same independent performance zones as the 600 T, six tethering ports to lock in a patient’s position during non-weight-bearing protocols, and an angled running platform.

For additional versatility, add a 2’ or 4’ (122 cm) extension to include an integrated treadmill.*.

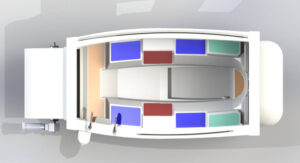

600 with deepwell

600 TDW – with deep well

* For treadmills, see our exercise equipment page.

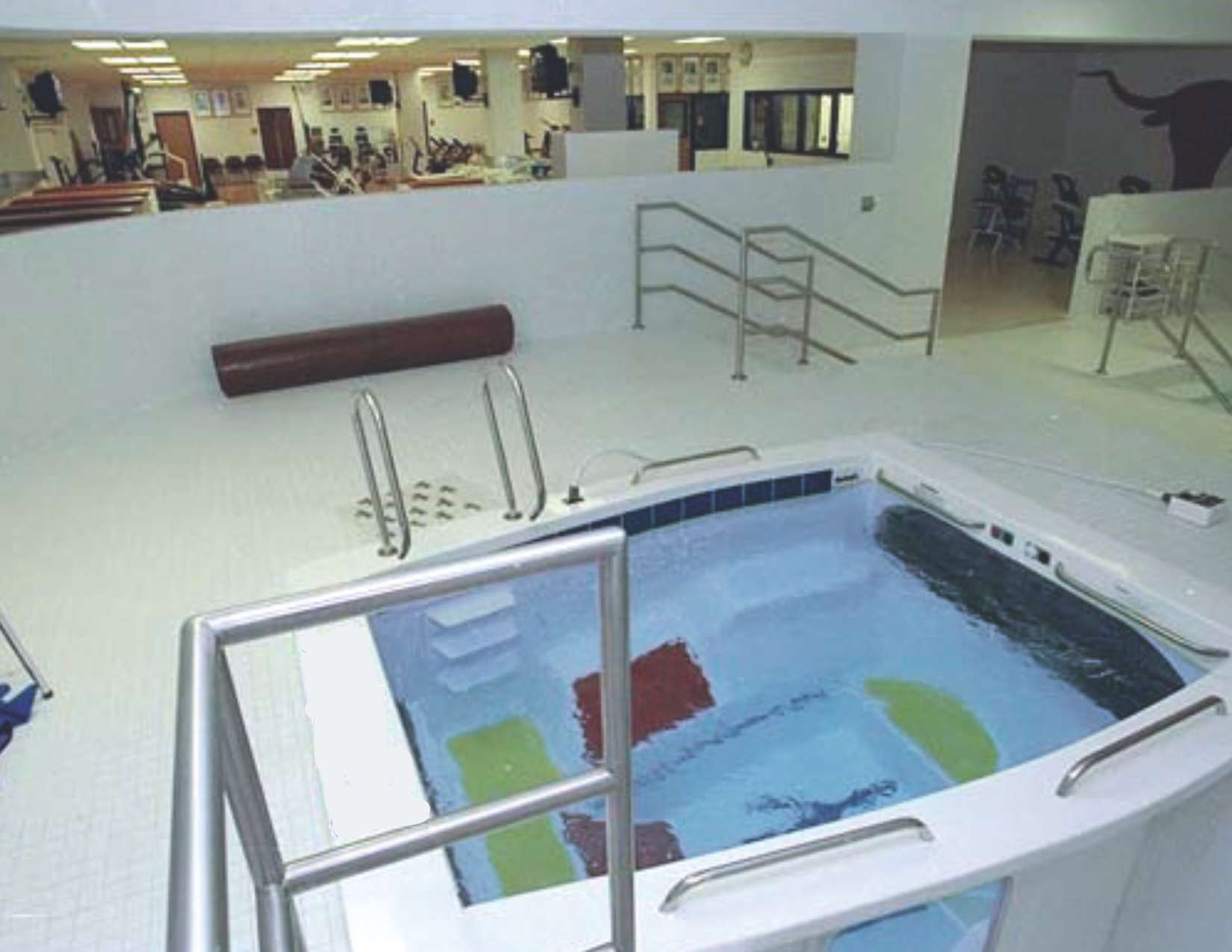

60 T

The SwimEx 60 T aquatic therapy pool is designed to offer all the benefits of a large therapeutic pool in a compact and space-efficient package. This innovative system features six performance zones, each providing a range of rehabilitation and recovery options. With SwimEx’s unique paddlewheel water current technology, users can experience customizable resistance for a variety of physical therapy exercises.

The option to integrate a treadmill further enhances the pool’s versatility, allowing for a wide range of aquatic therapy exercises, including walking and running against the current.

The 60 T is engineered for easy installation, available in either three or six modular pieces that can be assembled on-site, or it can be pre-assembled at the SwimEx factory for a more streamlined setup process. This makes it an excellent choice for physical therapy clinics and other healthcare facilities with limited space but a need for an effective, full-featured hydrotherapy solution.

600 with work stations top down

Workstation Explainer



600 T and 600 TDW

  • Four-piece construction
  • Recessed steps with stainless steel rails
  • Commercial filtration system
  • Equalization skimmer
  • Stainless steel front and side handrails
  • Rear emergency shut-off bar
  • 6 built-in tethering ports
  • 7.5hp electric motor
  • Thermal blanket (cover)
  • EDGE touchscreen monitor (programs water speed to accurately measure performance)
  • 4 underwater observation windows
  • Protocol book and aquatic therapy flash drive
  • Waterline tiles
  • Water vacuum
  • 40-degree angled pad for stationary running
  • Colored performance zones built in around perimeter of pool
  • 12″ (30.5cm) floor inserts at 48″ (122cm) depth, with removable pole
  • Start-up water treatment kit and test kit
  • Annual maintenance kit
  • On-site personal educational in-service

600 TDW

  • 12″ (30.5cm) deep well with floor insert

60 T

  • Compact version of the 600 T for limited-space facilities
  • 3 or 6-piece design
  • 5hp electric motor

Find out more about pool features and options.

600 T

  • Pool size: 18’ 3.5” x 7’ 8” x 5’ 10.5” (5.56m x 2.34m x 1.79m)
  • Water dimensions: 11′9″ x 6′3″ (3.58m x 1.90m)
  • Pit size: 20′ x 12′ x 5′8″ (6.1m x 3.66m x1.72m)
  • Pool weight with equipment: 3,500 lbs (1,587kg)
  • Pool volume: 3,200 gal (12,112 liters)
  • Pool filled weight: 31,000 lbs (14,061kg)
  • Load bearing: 460 lbs sq ft (2,245 kg/m2)

600 TDW

  • Pool size: 18’ 3.5” x 7’ 8” x 6’-10.5” (5.56m x 2.34m x 2.09m)
  • Water dimensions: 11′9″ x 6′3″ (3.58m x 1.90m)
  • Pit size: 20′ x 12′ x 5′8″ and 6′8″ (6.1m x 3.66m x 1.73m and 2.03m)
  • Pool weight with equipment: 3,500 lbs (1,587kg)
  • Pool volume: 3,300 gal (12,490 liters)
  • Pool filled weight: 31,850 lbs (14,447kg)
  • Load bearing: 460 lbs sq ft (2,245 kg/m2)

60 T

  • Pool size: 13′7″ x 7′7″x 5′10″ (2.31m x 4.14m x 1.78m)
  • Water dimensions: 7′9″ x 6′3″  (1.90m x 2.36m)
  • Pit size: 15′ x 20′ x 5′8″ (3.66m x 4.57m x 1.72m)
  • Pool weight with equipment: 2,250 lbs (1,020 kg)
  • Pool volume: 2,300 gal (8706 l)
  • Pool filled weight: 21,480 lbs (9,743 kg)
  • Load bearing: 525 lbs sq ft (2,563 kg/m2)

For European installations: For medical and sports-medical use, installations can be according to the German DIN19643 / KOK standard.

Please work with a SwimEx representative for exact details and measurements.

600 T

  • 2′ (61 cm) extension increasing pool length (up to 3)
  • Assembly of pool at factory
  • 8-piece multi-section design for access into tight areas
  • Natural gas or propane heater vs standard electric heater
  • Ozonator or UV water treatment
  • Underwater lights
  • Custom colors or logo tiles
  • Hydrotherapy jet system with up to 6 jets (includes 1hp pump and controller)
  • Deep tissue massage wand with independent pump
  • Underwater HD video camera system with DVR and monitor
  • Exterior video camera system with monitor
  • Removable stainless steel stabilization bar
  • Integrated motorized treadmill *
  • Drop-in aquatic treadmill *
  • Disability lifts

600TDW

  • All options of the 600 T plus:
  • 24″ deep water well
  • Team logo on deep well cover

60 T

  • All options of the 600 T plus:
  • 6-piece multi-sectional design for access into tight areas
  • 7.5hp electric motor for faster water speeds

* For treadmills, see our exercise equipment page.

Find out more about pool features and options.
