Exercise Pool - Ultimate Swim Spa - 800 Series

800 S model

Ultimate exercise pool key features

66″ (168cm) water depth
Easy to maintain
Customizable with a second floor level
30″ (76cm) deep paddlewheel current
Add in integrated treadmill, steps, benches or exercise tools
Great for a wide range of non weight-bearing activities
Also comes in 4-piece design

See customer reviews of our 800 Series pools.

The 800 series exercise pool is the ultimate swim spa. It offers the freedom of an open work space with an overall water depth of 66″ (167.6 cm) and a 30″ (76 cm) deep water current. Add a second floor level in this pool to create the ultimate multi-level aquatic machine. Choose a customized depth between 42″ (107 cm) and 54″ (137 cm). For even more versatility add steps, benches, and an integrated treadmill. Create your ideal pool to swim, exercise, and achieve non-weight bearing protocols.

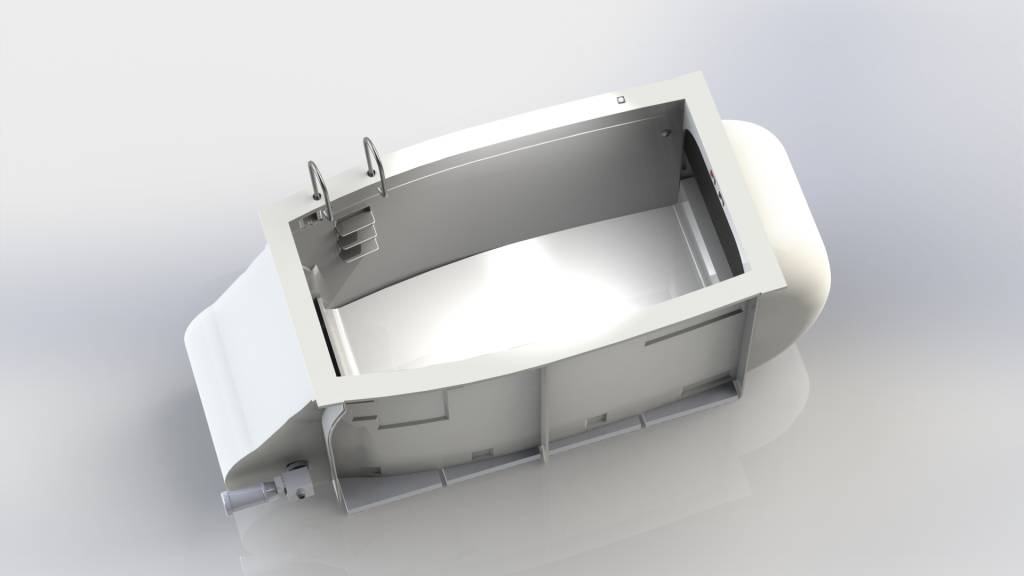

4-piece fiberglass pool construction
Custom fit thermal blanket
Start-up treatment and test kit
Annual maintenance kit
Water vacuum
Filtration system: 1hp pump, 5.5kW heater, 320 sq ft (29.72 sq m) filter
Recessed steps with stainless steel handrails
Rear emergency shut-off bar
Non-skid floor surface
Stainless steel polished front and rear grates (grates are NSF listed for suction entrapment)
7hp electric motor with paddlewheel drive system
2 stainless steel front handrails

Technical components can vary to local standards.

For more information visit our features and options page.

Also see our section on operating and maintaining your pool.

Pool size: 18’-3 ¼” x 7’-8” x 7’-10 ¼” (5.57m x 2.34m x 2.40m)
Water depth: 67½″ (optional 42″-60″)
Water dimensions: 11′8½″ x 6′3″ (3.57m x 1.9m)
Pit size: 20′ x 12′ x 7′8¼″ (6.1m x 3.67m x 2.34m)
Pool empty weight with equipment: 3,994 lbs (1812kg)
Pool volume: 4,900 gal (18,549 liters)
Weight of water: 40,892 lbs (18,859kg)
Pool filled weight: 44,886 lbs (20,360kg)
Load bearing: 789 lbs sq ft (3,852 kg/m2)

EDGE touchscreen monitor to program and display your workout
Ozone or UV water treatment
Custom pool and coping colors
Custom waterline tiles
Assembly of pool at factory
1m extension, increasing pool length
Natural gas or propane heater vs standard electric heater
Underwater lights
2 stainless steel handrails
Hydrotherapy jet system with up to 12 jets (includes 2hp pump and controller)
Additional floor depth: 3.5’ to 4.5’ (or anywhere in between)
Hardtop safety cover
Manual security cover
Integrated motorized treadmill (requires additional floor height) *

* For treadmills, visit our pool exercise equipment page.
